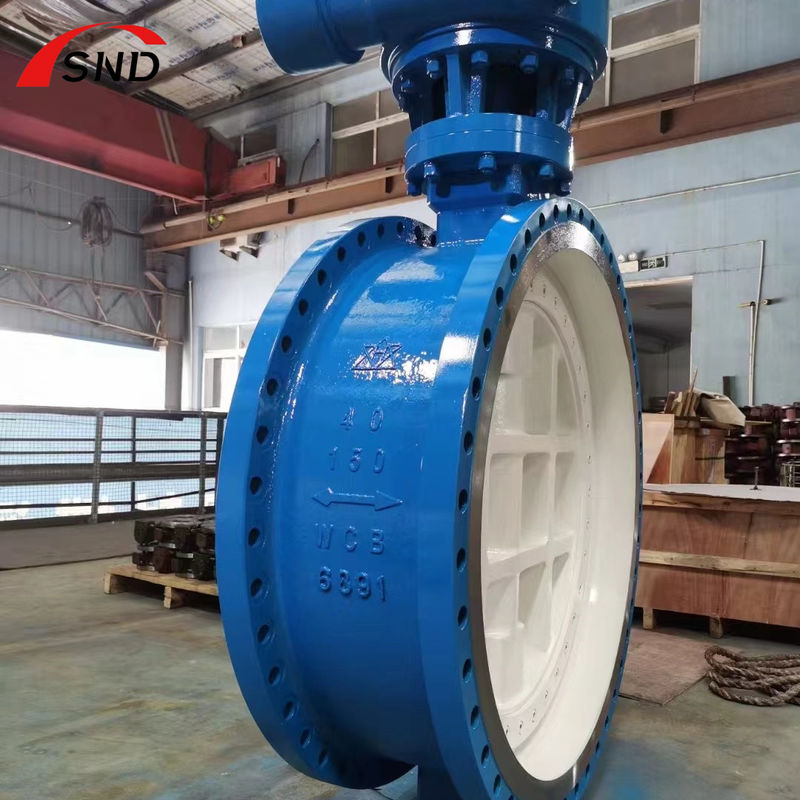

Cast Steel Welded Butterfly Valve GB12224 DIN2559 For Petrochemical Industry

Name: Cast Steel Welded Butterfly Valve GB12224 DIN2559 For Petrochemical Industry
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Butterfly Valve
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Zhengjiang,China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Butterfly Valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $60-90/pc

Packaging Details: Wood box/ wood pallet

Delivery Time: 20 days

Payment Terms: L/C,T/T

Supply Ability: 100,000 per year

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Cast Steel Welded Butterfly Valve, Welded Butterfly Valve GB12224, DIN2559 Butterfly Valve


Product Name:	Cast Steel Welded Butterfly Valve Wafer Type For Petrochemical Industry	Key Words:	Butterfly Valve
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual	Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months	Connection:	Wafer Type
Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C	Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Cast Steel	Packing:	Customized Acceptable
Customized Support:	OEM	Pressure:	150/300/600/900/1500/2500LB

Product Name:	Cast Steel Welded Butterfly Valve Wafer Type For Petrochemical Industry
Key Words:	Butterfly Valve
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual
Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months
Connection:	Wafer Type
Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C
Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Cast Steel
Packing:	Customized Acceptable
Customized Support:	OEM
Pressure:	150/300/600/900/1500/2500LB

Product Description

Cast Steel Welded Butterfly Valve Wafer Type For Petrochemical Industry

The welded butterfly valve adopts a precise J-shaped elastic sealing ring and a three-eccentric multi-layer metal hard sealing structure. It is widely used in industrial pipelines such as metallurgy, electricity, petrochemical, water supply and drainage, and municipal construction with a medium temperature of ≤425℃ to adjust flow and carry and cut off fluid.

Materials & Specifications

Part name	Material
Valve body	Carbon steel, stainless steel, chrome aluminum steel
Butterfly plate	Carbon steel, alloy steel, stainless steel
Valve seat	3 stainless steel, cobalt-based carbide
Sleeve	Stainless steel
Valve stem	Stainless steel, special materials
Packing	Flexible graphite
Nominal pressure PN (MPa)	Strength test (1.5×PN) Sealing test (1.1×PN)
Applicable temperature	Carbon steel: -29℃～425℃
Applicable medium	Water, steam, hot water, oil
Drive mode	Worm gear drive, electric, pneumatic, hydraulic
Pressure level	ANSI 150Lb pound class/PN25
Welding standard	GB12224, ANSI B16, 25, DIN2559

Key Features

Butterfly plate seal combines hard and soft layering pieces of metal with both metal seal and flexible seal advantages, providing excellent sealing performance in both low and high temperature cases.
Three-dimensional eccentric structure ensures valve seat and butterfly plate have almost no friction, with a tighter seal when closed.
Valve sealing surface uses welded stainless steel and cobalt-based alloy for superior wear resistance and long service life.
Unique structure provides flexible operation with reduced torque, maintaining proper sealing under high medium pressure with reliable performance and extended lifespan.

About Our Company

SND has been producing and selling metal goods for about 20 years. By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, we supply products made of materials like cast iron, steel, stainless steel, and aluminum. We also offer surface finishing and assembly services.

Our company serves various industries including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction. Our ISO9001-accredited quality control systems guarantee consistent and reliable quality for every component, with inspections including spectrometer, ultrasonic, magnetic, permeability, elongation, and tensile/yield strength testing.
