2500LB Bf Butterfly Valve Customized Ductile Iron Wafer Butterfly Valve

This manual clamp-type butterfly valve is a key device for regulating and controlling the on/off of fluids (water, gas, liquid, etc.) in industrial pipelines.

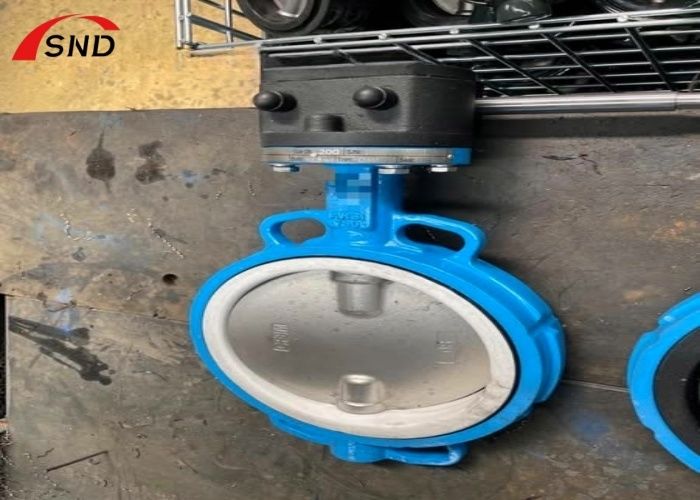

• Valve Body (blue part): Made of ductile iron/cast steel for high strength and impact resistance. Features clamp installation (bolts penetrate pipe flange to clamp valve body), saving space with flexible installation. Commonly used in water supply, drainage, HVAC, and fire protection systems. Internal black rubber valve seat seal cooperates with valve plate to block fluid leakage.
• Valve Plate (silver disc): The core pipeline "switch" that rotates around central axis (0°-90°) to control fluid flow. Surface may have anti-corrosion treatment (stainless steel, spray coating) for complex conditions like acid, alkali, and high temperature.
• Actuator (black + yellow part): Manual drive with yellow turntable/handle that rotates valve plate through gear/worm gear mechanism. Simple, reliable operation suitable for non-automated scenarios. Black shell contains transmission structure with gears and bearings for smooth operation and stable torque.

Applications: Widely used in municipal water supply/drainage, building HVAC, and fire sprinkler systems due to compact structure, low flow resistance, and cost-effectiveness. Examples include community water flow adjustment, shopping mall AC water system control, and fire pipe emergency cut-off.

Advantages: Manual operation requires no power source with simple maintenance; clamp installation suits narrow spaces; rubber soft seal ideal for low-pressure, normal/medium temperature clean media with excellent sealing and low noise.

SND has been producing and selling metal goods for about 20 years. Using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, we supply products made of cast iron, steel, stainless steel, aluminum, etc., with surface finishing and assembly services.

Our company serves various industries including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction. Our ISO9001-accredited quality control systems ensure consistent, reliable quality for every component.

Routine production procedures include spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections.
