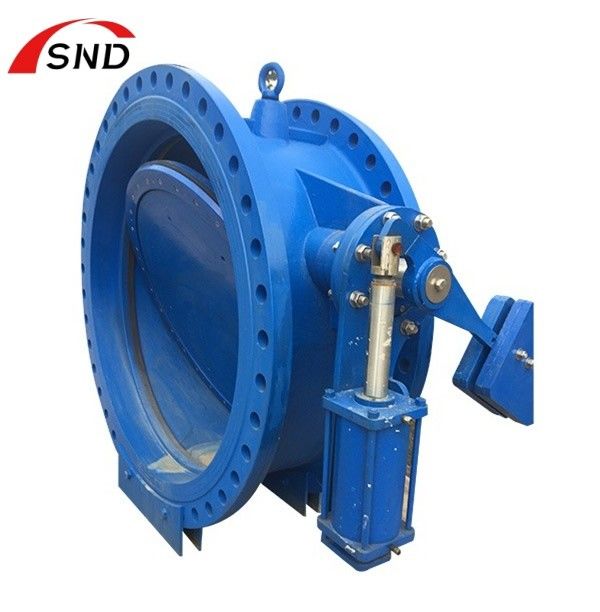

Flanged Cast Iron Butterfly Check Valve With 150LB-2500LB Pressure

Name: Flanged Cast Iron Butterfly Check Valve With 150LB-2500LB Pressure
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Check Valve
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Zhengjiang,China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Check Valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $60-90/pc

Packaging Details: Wood box/ wood pallet

Delivery Time: 20 days

Payment Terms: L/C,T/T

Supply Ability: 100,000 per year

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Cast Iron Butterfly Check Valve, Flanged Butterfly Check Valve, flanged dn150 check valve


Product Name:	Flanged Cast Iron Butterfly Type Buffer Check Valve OEM Support	Key Words:	Check Valve
Power:	Manual, Electric Power+manual	Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months	Connection:	Flanged
Application:	Chemical Industry	Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Cast Iron	Packing:	Customized Acceptable
Customized Support:	OEM	Pressure:	150/300/600/900/1500/2500LB

Product Name:	Flanged Cast Iron Butterfly Type Buffer Check Valve OEM Support
Key Words:	Check Valve
Power:	Manual, Electric Power+manual
Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months
Connection:	Flanged
Application:	Chemical Industry
Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Cast Iron
Packing:	Customized Acceptable
Customized Support:	OEM
Pressure:	150/300/600/900/1500/2500LB

Product Description

Flanged Cast Iron Butterfly Type Buffer Check Valve OEM Support

Butterfly Type Buffer Check Valve Product Overview

The Butterfly Buffer Check Valve is primarily used at water pump outlets in industrial water supply and sewage treatment plants to prevent medium backflow in pipe networks. It automatically eliminates destructive water hammer, protecting both water pumps and pipelines from damage. The valve consists of a valve body, valve disc, buffer device, and micro-adjusting valve. Key features include a novel structure, compact size, low fluid resistance, stable operation, reliable sealing, excellent wear resistance, and superior buffering performance, making it ideal for industrial water and urban sewage discharge applications.

Materials of Main Parts

Parts Name	Valve Body	Butterfly Plate	Sealing Ring	Valve Stem	Filler
Material	Gray cast iron, carbon steel	Gray cast iron, cast steel, ductile iron	Nitrile oil-resistant rubber, chloroprene rubber	Stainless steel	Polytetrafluoroethylene

Working Principle of the Butterfly Check Valve

When medium flows through the valve body channel, the medium pressure exceeds the spring force, pushing the two butterfly plates open to allow flow. When flow stops, the spring force resets the plates, closing the valve and preventing backflow. Also known as a double-flap check valve, it features wear-resistant welded sealing surfaces or rubber lining for broad application and reliable sealing. This automatic valve requires no manual operation and is commonly used in pure pipelines, industrial, environmental, water treatment, and high-rise building water supply systems to prevent reverse medium flow.

Product Images

About Our Company

SND has specialized in metal goods manufacturing for 20 years, utilizing techniques including sand casting, lost wax casting, lost foam casting, and precision machining. We supply components in cast iron, steel, stainless steel, aluminum, and other materials, complemented by surface finishing and assembly services. Our expertise spans automotive, rail transportation, agricultural machinery, chemical, energy, electrical, water, air compressor, and construction industries. ISO9001-certified quality control ensures consistent reliability, with production processes including spectrometer, ultrasonic, magnetic, permeability, elongation, and tensile/yield strength testing.
